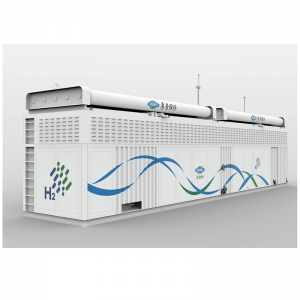

The integrated hydrogen production and refueling intelligent equipment

Product introduction

The integrated hydrogen production and refueling intelligent equipment is an innovative system that combines hydrogen generation, purification, compression, storage, and dispensing functions into a single unit. It revolutionizes the traditional hydrogen station model reliant on external hydrogen transportation by enabling on-site hydrogen usage, effectively addressing challenges such as high hydrogen storage and transportation costs and heavy infrastructure dependency.

Product introduction

Product Series
Daily Refueling Capacity		100 kg/d		200 kg/d	500 kg/d
Hydrogen Production		100 Nm³/h		200 Nm³/h	500 Nm³/h
Hydrogen production System	Output pressure	≥1.5MPa	Compression System	Maximum Exhaust Pressure	52MPa
				Stages	III
	Operating Current Density	3000~6000 A/m²		Exhaust Temperature (after cooling)	≤30℃
	Operating temperature	85 ~ 90℃	Hydrogen Storage System	Maximum Hydrogen Storage Pressure	52MPa
	Optional Energy Efficiency Ratings	I / II /III		Water Volume	11m³
				Type	III
	Hydrogen purity	≥99.999%	Refueling System	Refueling Pressure	35MPa
				Refueling Speed	≤7.2 kg/min

Features

1. High volumetric hydrogen storage density, could reach liquid hydrogen density;
2. High hydrogen storage quality and high hydrogen releasing rate, ensuring the long-term full-load operation of high-power fuel cells;
3. High purity of hydrogen release, effectively ensuring the service life of hydrogen fuel cells;
4. Low storage pressure, solid-state storage, and good safety;
5. The filling pressure is low, and the hydrogen production system can be directly used to fill the solid hydrogen storage device without pressurization;
6. The energy consumption is low, and the waste heat generated during fuel cell power generation can be used to supply hydrogen to the solid hydrogen storage system;
7. Low hydrogen storage unit cost, long cycle life of solid hydrogen storage system and high residual value;
8. Less investment, less equipment for hydrogen storage and supply system, and small footprint.
