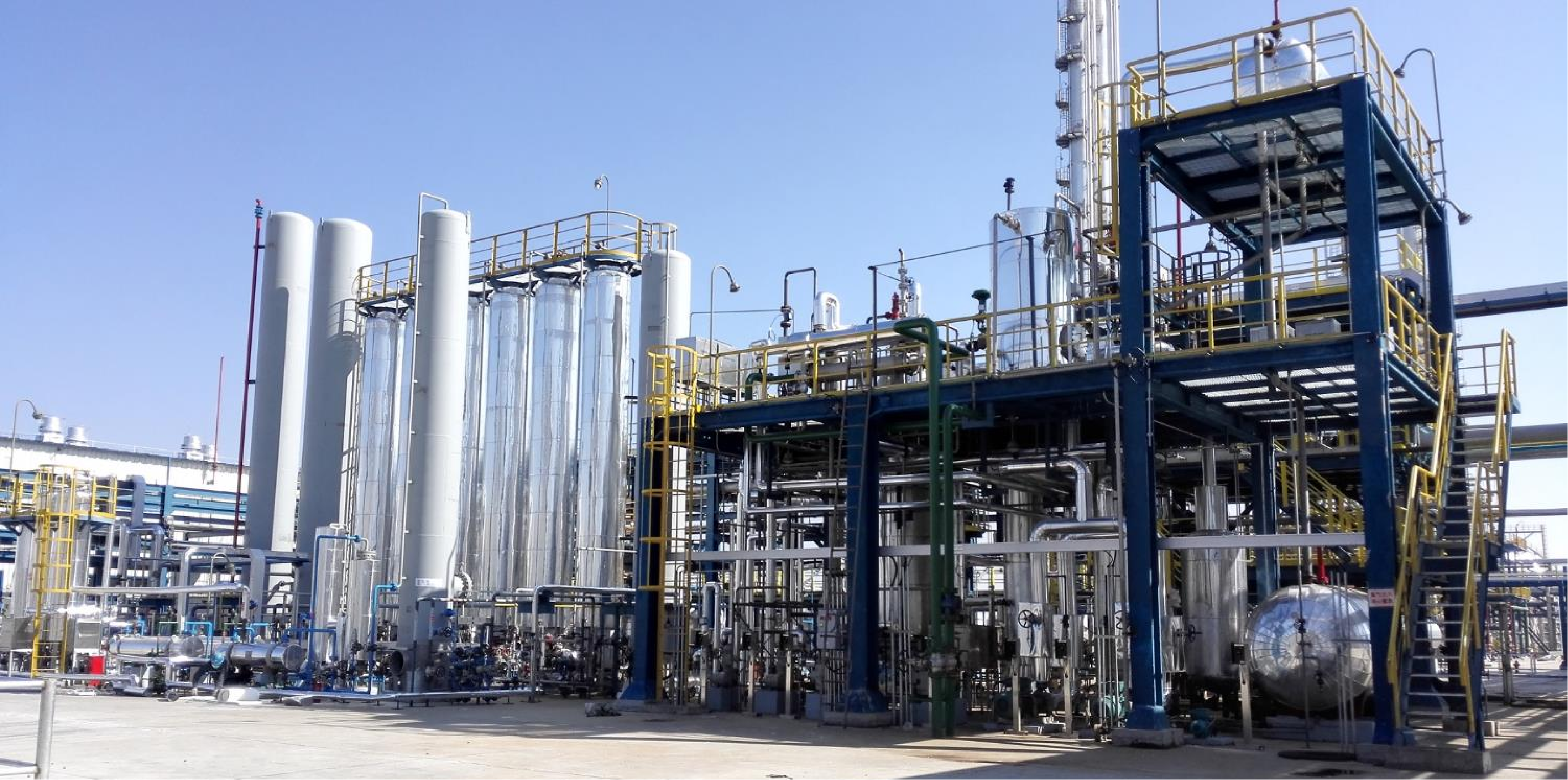

This project is a hydrogen production unit that is a supporting facility for China Coal Mengda New Energy Chemical Co., Ltd. It adopts a process route combining methanol cracking and pressure swing adsorption to produce high-purity hydrogen gas.
The designed hydrogen production capacity of the unit is 6,000 Nm³/h.
Using methanol and water as raw materials, a cracking reaction occurs under the action of the independently developed HNA-01 catalyst, generating a hydrogen-containing mixture, which is then purified by PSA to obtain 99.999% high-purity hydrogen gas.
The methanol processing capacity of the unit is 120 tons per day, the daily hydrogen production reaches 144,000 Nm³, the methanol conversion rate exceeds 99.5%, and the comprehensive yield of hydrogen is as high as 95%.
The on-site installation period is 5 months. It adopts a fully packaged design, achieving overall manufacturing and testing within the factory. On-site, only the connection of utility pipelines is required for immediate operation.
This unit was put into operation in 2021. It operates stably and reliably, providing a stable and reliable high-purity hydrogen source for China Coal Mengda Chemical production, significantly reducing the transportation cost and supply risk of purchased hydrogen.
