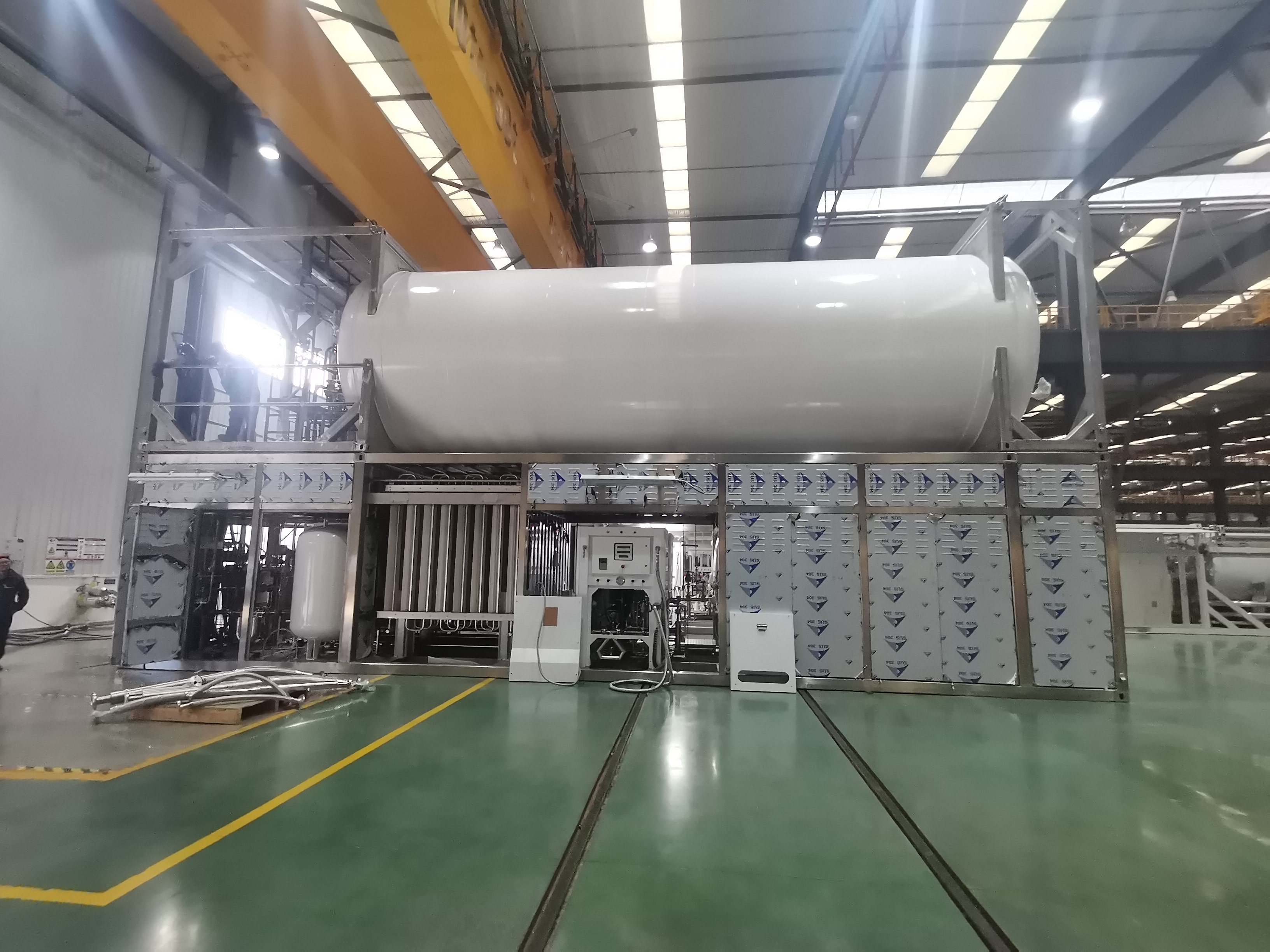

This station innovatively integrates the LNG storage tank, cryogenic pump skid, compressor unit, dispenser, and control system within a skid-mounted module of standard container dimensions. It enables factory pre-fabrication, transportation as a complete unit, and rapid commissioning, making it particularly suitable for mobile clean fuel supply in temporary work sites, remote mining areas, and extreme winter conditions.

Core Product & Technical Features

1. Fully Integrated Skid-Mounted Design
   The entire station adopts a unified standard container skid structure, integrating a vacuum-insulated LNG storage tank (60 m³), a cryogenic submersible pump skid, a BOG recovery compressor, and a dual-nozzle dispenser. All piping, instrumentation, and electrical systems are installed, pressure-tested, and commissioned at the factory, achieving "plug-and-play" operation. On-site work is minimized to external utility connections and final checks, drastically reducing the deployment timeline.
2. Enhanced Adaptability for Extreme Cold
   Designed for Russia's winter temperatures as low as -50°C, the skid incorporates a fully automatic freeze protection and insulation system:
   • Storage tanks and piping feature double-wall vacuum insulation with redundant electric trace heating.
   • Compressor and pump skids include integrated ambient heating modules to ensure reliable cold-start performance.
   • Control systems and electrical cabinets are equipped with condensation-prevention heaters, achieving an IP65 protection rating.
3. Optimized Safety & Functionality in Compact Space
   Comprehensive safety features are implemented within the limited footprint:
   • Multi-Layer Safety Monitoring: Integrated combustible gas detection, oxygen monitoring, and cryogenic leak sensors.
   • Intelligent Interlock Control: Unified design of the Emergency Shutdown System (ESD) and process control.
   • Compact Layout: 3D piping design optimizes space utilization while maintaining maintenance access.
4. Intelligent Remote Operation & Maintenance Support
   The skid is equipped with a built-in IoT gateway and remote monitoring terminal, enabling:
   • Remote start/stop, parameter adjustment, and fault diagnostics.
   • Automatic upload of refueling data and intelligent inventory management.

Mobile Deployment & Rapid Response Advantages
The skid-mounted station can be transported as a single unit via road, rail, or sea. Upon arrival, it requires only basic site leveling and utility connections to become operational within 72 hours. It is especially suited for:

• Temporary energy supply points for oil and gas field exploration.
• Mobile refueling stations along winter northern transport corridors.
• Emergency capacity expansion units for ports and logistics hubs.

This project demonstrates the capability to deliver reliable clean energy solutions under the dual challenges of extreme environments and rapid deployment through highly integrated, modular design. It provides an innovative model for developing distributed LNG refueling networks in Russia and other regions with similar climatic conditions.
